Discover how MC-monitoring is enhancing flexibility, sustainability, and efficiency at the Z’Mutt Hydropower Plant with advanced variable-speed technology and intelligent monitoring systems.

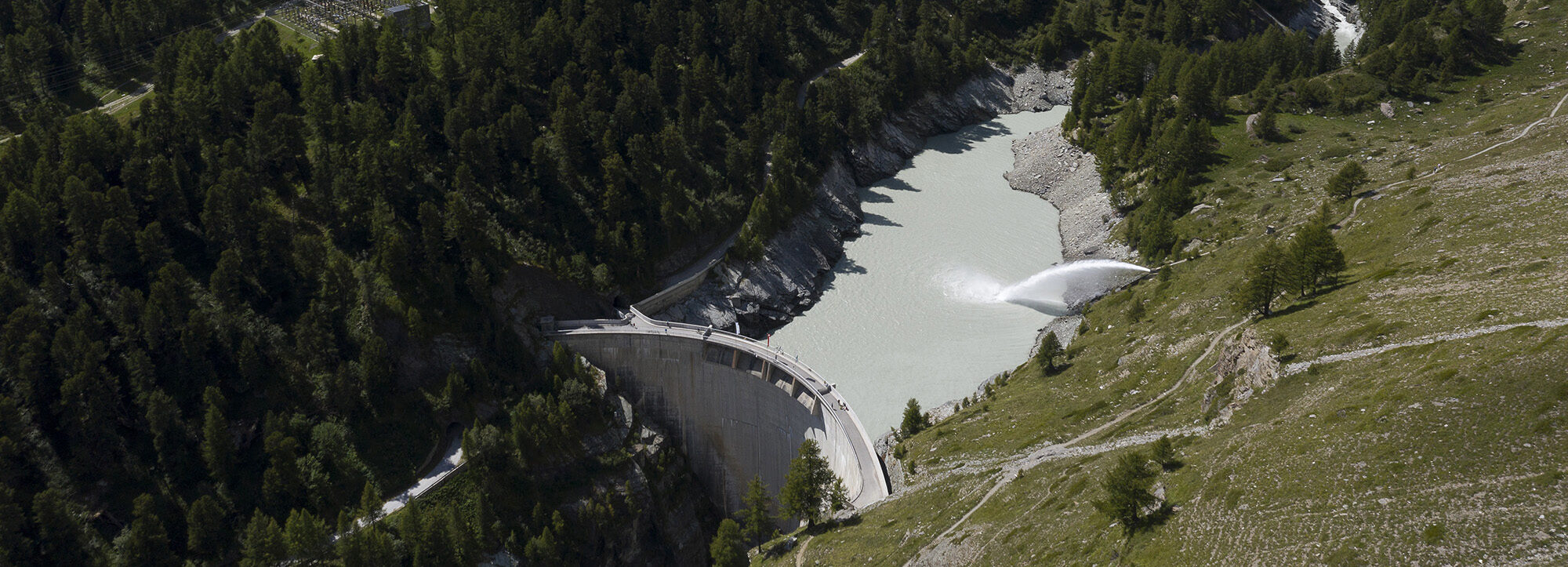

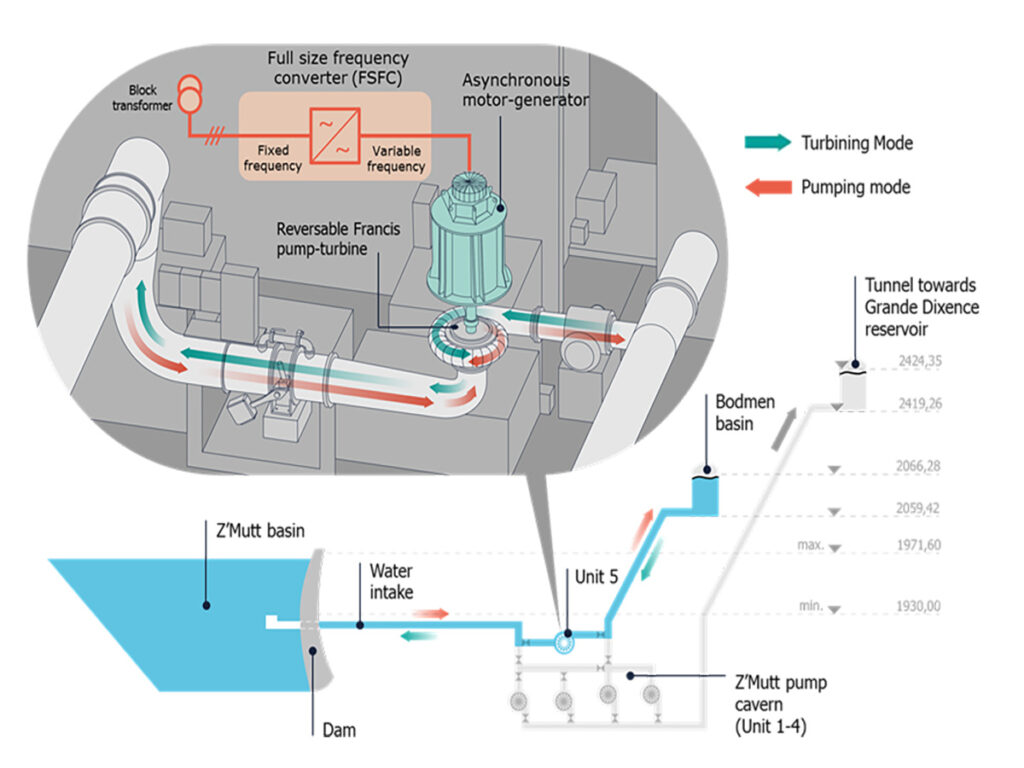

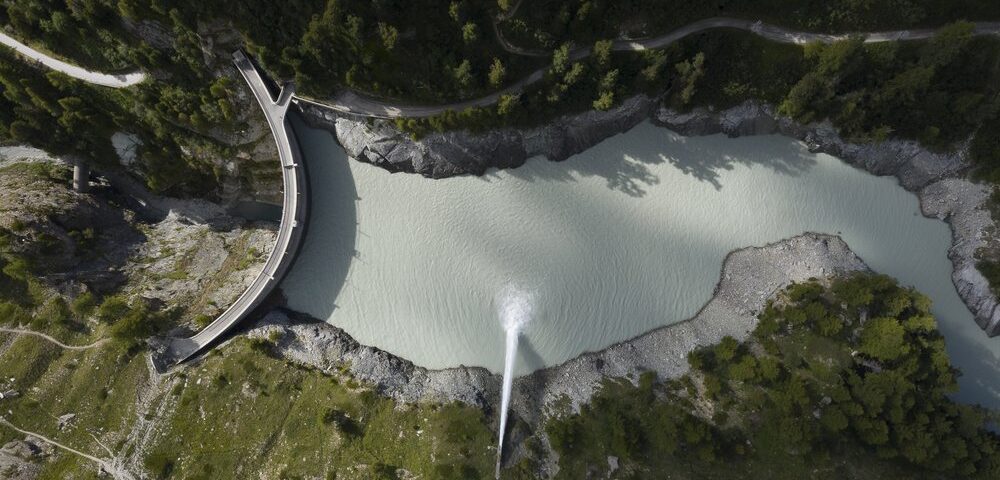

The Z’Mutt pumping station, located in Canton Valais, Switzerland, has been a cornerstone of the Grande Dixence hydroelectric scheme since 1964. With a total capacity of 88 MW across five pumps, it has long supported Switzerland’s renewable energy goals. However, to meet modern energy demands, the station has undergone a groundbreaking upgrade, integrating state-of-the-art variable-speed technology.

Predicting the onset of instability in variable-speed pump-turbines during pump mode is inherently challenging, with model tests often yielding results that differ from prototype behavior.
The collaboration between Power Vision Engineering (PVE) and MC-Monitoring played a pivotal role in the success of the Z’Mutt modernization project. By combining PVE’s expertise in digital twin technology and system modeling with MC-Monitoring’s advanced condition monitoring solutions, the partnership delivered a state-of-the-art monitoring system for Unit U5. This joint effort ensured precise real-time tracking of high-frequency vibrations and pressure fluctuations, enabling safe and flexible operations in variable-speed pump-turbines.

The introduction of variable-speed technology at Z’Mutt brought several operational benefits:
Extensive on-site testing during the commissioning of Unit U5 validated the effectiveness of the monitoring system. The tests included overspeed tests, stability limit explorations, and transient condition simulations. Notably, the tests revealed discrepancies between model test predictions and real-world prototype behavior, particularly in the pump hump region where instability is most likely to occur.
For instance, during a stability limit test, the variable-speed unit’s speed was gradually reduced while maintaining a fixed guide vane position. The monitoring system detected the onset of instability through increased vibrations and pressure fluctuations. By identifying the critical speed limits, the plant operators could refine operational thresholds, ensuring safe and stable performance across various operating conditions.
The Hydro-Clone system acts as a real-time digital twin, simulating the plant’s dynamic behavior. It continuously updates with actual boundary conditions and accurately replicates transient behaviors. This allows plant operators to:
The Z’Mutt Pumping Station’s modernization highlights the importance of integrating digital monitoring solutions to manage the complexities of variable-speed pump-turbines. The on-site testing results demonstrated that the advanced monitoring system significantly enhances operational reliability and safety.
The successful implementation of this innovative monitoring approach at Z’Mutt sets a precedent for the broader hydropower industry. As the demand for flexible and resilient energy solutions grows, variable-speed pump-turbines equipped with real-time monitoring systems will become essential in optimizing hydropower operations. These systems offer:
The Z’Mutt upgrade serves as a beacon for modernizing hydroelectric facilities worldwide. As part of the XFLEX HYDRO project, it demonstrates how cutting-edge technologies can transform legacy infrastructure into future-ready energy systems. The insights gained from this project will guide advancements in sustainable energy across the globe.
