Proximity probes are non-contact eddy-current sensors used to measure shaft vibration and axial thrust position in rotating machinery. These sensors are widely used in turbines, hydrogenerators, compressors, pumps, and large electric motors where precise monitoring of shaft displacement is critical for machine protection and condition monitoring.
By continuously measuring shaft movement relative to the bearing, proximity probes enable early detection of mechanical issues such as imbalance, misalignment, shaft eccentricity, and thrust bearing wear. This allows operators to implement predictive maintenance strategies, reduce unplanned downtime, and improve the reliability and lifetime of critical rotating assets.
MC-monitoring offers two complementary proximity measurement solutions designed to meet different monitoring architectures and installation requirements:
Together, these solutions provide flexible monitoring options ranging from advanced digital condition monitoring systems to API 670 compliant machinery protection systems.
The Smart Proximity System (SPS) is a modular eddy-current measurement system designed for shaft vibration and axial position monitoring in rotating machinery.
The system consists of a proximity probe, extension cable, and signal conditioning electronics. Depending on the application, the SPS can be equipped with either:
The SPS is a modular system composed of three key elements:
All system elements are fully interchangeable, enabling quick on-site servicing and reducing downtime without compromising performance or signal integrity.
The Smart Proximity System provides several signal outputs depending on the selected electronics configuration.
The dynamic voltage output is available on both the DPT-100 and PSD-200, delivering a raw signal of 8 mV/µm or 4 mV/µm for vibration analysis, commissioning, and machinery protection systems.
With the DPT-100, additional outputs are available, including a Modbus RTU digital interface providing calculated values, as well as an optional 4–20 mA processed output for direct integration into PLC and control systems.
This combination of raw and processed signals allows the SPS to support both advanced diagnostics and continuous machine protection, across modern and legacy system architectures.
The PPT-280 is a compact, all-in-one proximity probe designed for fast, straightforward installation without the need for external signal conditioners. The probe is designed with integrated linearization electronics to ensure excellent linearity and active temperature compensation. The integrated 750 kHz oscillator ensures a measurement with minimal magnetic run out effect. It integrates the eddy-current into a single, sealed body—delivering a direct voltage output proportional to the shaft’s position.
An optional configuration kit allows users to adjust the measuring range, power supply voltage, and perform on-site calibration, making the PPT-280 a flexible and efficient solution for standard vibration or axial position monitoring.
The PPT-280 is ideal for users seeking a compact, self-contained proximity probe that minimizes installation effort and component count.
Monitoring both vibration and position is critical for understanding the real health of rotating equipment. The CMS-500P provides the tools to turn this data into actionable insights for long-term performance and reliability.

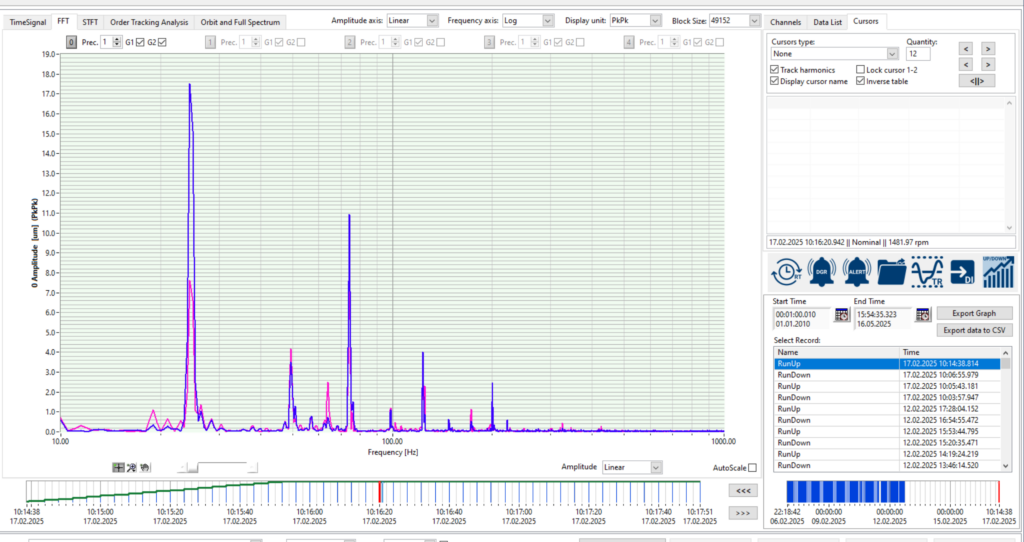

The Fast Fourier Transform converts the raw vibration signal into its frequency components, revealing mechanical faults like resonance, unbalance, or misalignment. It’s essential for in-depth diagnostics and root cause analysis.
Orbit plots visualize the shaft’s real-time motion in the horizontal plane using two orthogonal proximity probes. This view is key to identifying unbalance, rubs, fluid film instabilities, or looseness — especially during startup, shutdown, or transients.

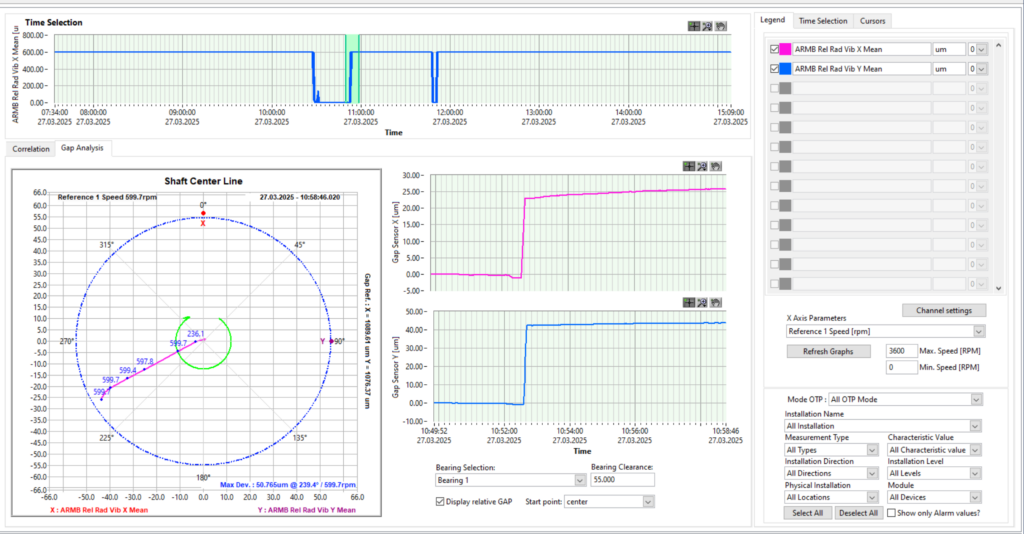

The Shaft Center Line plot shows the average position of the shaft within the bearing clearance, based on two orthogonal proximity probes. It reveals how the shaft moves or drifts over time due to load changes, thermal effects, misalignment, or oil film behavior.
This view is particularly valuable in vertical machines, where oil film conditions and dynamic loads can cause subtle radial shifts. By tracking these trends, operators can detect evolving mechanical issues and indirectly assess the performance of the bearing lubrication system.
